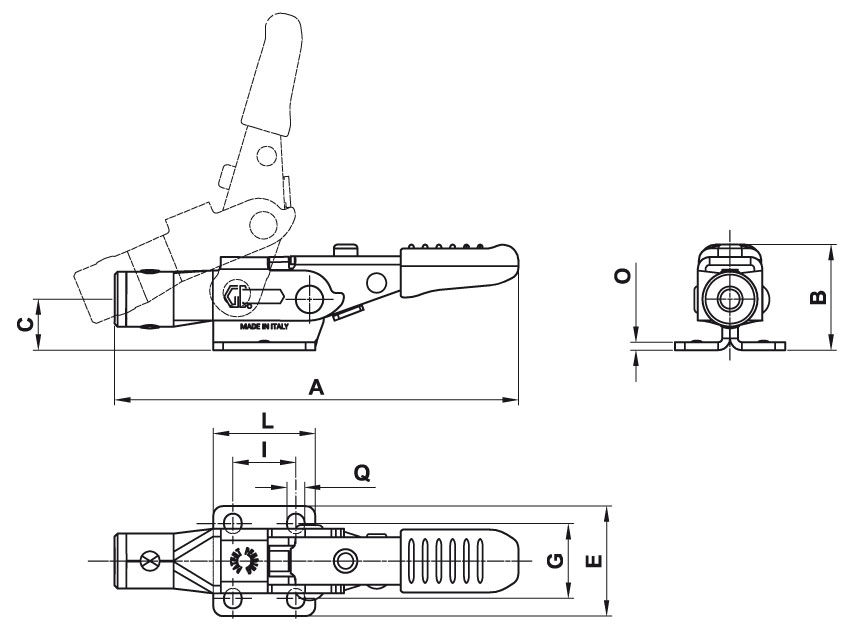

| Code | Code INOX | A | B | C | E | G | I | L | O | Q | Fh (daN) | gr |
| 2S.T160/T5 | 2S.T160/T5X | 103 | 26,8 | 13 | 28 | 19 | 16 | 26 | 2 | 4,5 | 175 | 100 |
| 2S.T320/T5 | 2S.T320/T5X | 153 | 38,5 | 19 | 44 | 32 | 19 | 40 | 3 | 6,7 | 400 | 295 |
| 2S.T700/T5 | 2S.T700/T5X | 222 | 53 | 28 | 54 | 38,1 | 41,5 | 60 | 3,5 | 8,5 | 750 | 690 |
View the embedded image gallery online at:
https://www.getechsrl.com/en/products/hyrax/toggle/t5-latch-type-toggle-clamp-with-safety-lock.html#sigProId7fe189173a
https://www.getechsrl.com/en/products/hyrax/toggle/t5-latch-type-toggle-clamp-with-safety-lock.html#sigProId7fe189173a
Hyrax - Outlet
Toggle Clamps
T5

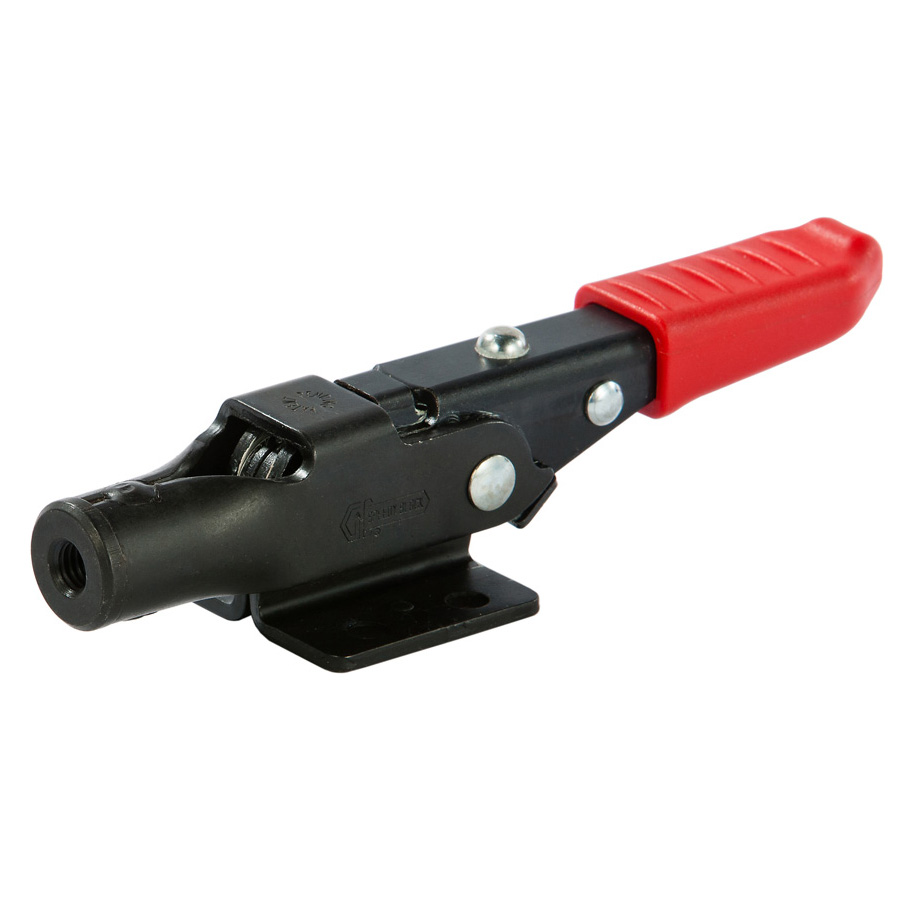

Latch Type Toggle Clamp with Safety Lock
Features and applications
The latch type toggle clamps are most suitable for applications on lids and covers. Thanks to the materials chosen, the tools of the latch type heavy performance line guarantee extra resistance. An important feature of the toggle clamps of this line is the low profile of the tool, which becomes essential when clearance above the tool is required. In the closed position, the control lever is parallel to the support base.
A special grease is placed between two contacting surfaces during assembly.
Fields of Application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering
Material: Sheet metal parts and riveted pivots in galvanized steel or AISI 304 stainless steel. Turned parts in galvanized steel or AISI 303 stainless steel.
Handles: Red polyurethane - resistant to oils, grease and other chemical agents.
