| Code | Code INOX | A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q | S | Fh (daN) | gr |
| 2S.T33/T | 2S.T33/TX | 200 | 45 | 19 | 40 | 49 | 35 | 33,5 | 19 | 19 | 50 | 34 | 17 | 3 | 22,3 | 6,5 | 83 | 500 | 422 |
| 2S.T43/T | 2S.T43/TX | 248 | 56 | 28 | 51 | 63 | 50 | 45 | 31 | 32 | 61 | 41 | 20 | 4 | 25,4 | 8,5 | 110 | 1000 | 811 |
| 2S.T33/TF | 2S.T33/TFX | 197 | 45 | 19 | 40 | 49 | - | 33,5 | - | 19 | 50 | - | 17 | 3 | - | 6,5 | 83 | 500 | 394 |
| 2S.T43/TF | 2S.T43/TFX | 242 | 56 | 28 | 51 | 63 | - | 45 | - | 32 | 61 | - | 20 | 4 | - | 8,5 | 90 | 1000 | 696 |
View the embedded image gallery online at:
https://www.getechsrl.com/en/products/hyrax/toggle/t-tf-latch-type-toggle-clamp.html#sigProId8d130c9096
https://www.getechsrl.com/en/products/hyrax/toggle/t-tf-latch-type-toggle-clamp.html#sigProId8d130c9096
Hyrax - Outlet
Toggle Clamps

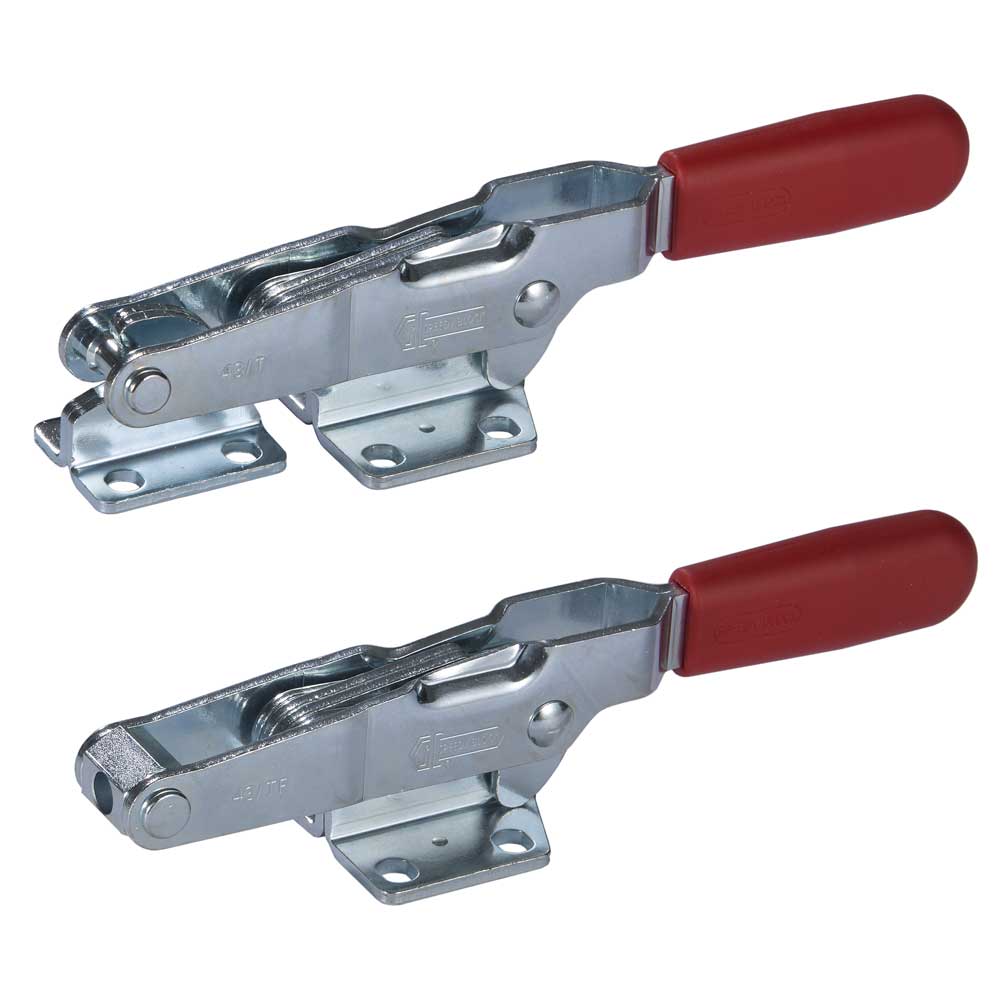

T - TF
Latch Type Toggle Clamp
AISI 304 stainless steel items indicated with an 'X' in their coding (e.g. 2S.T33/TX)
Features and applications

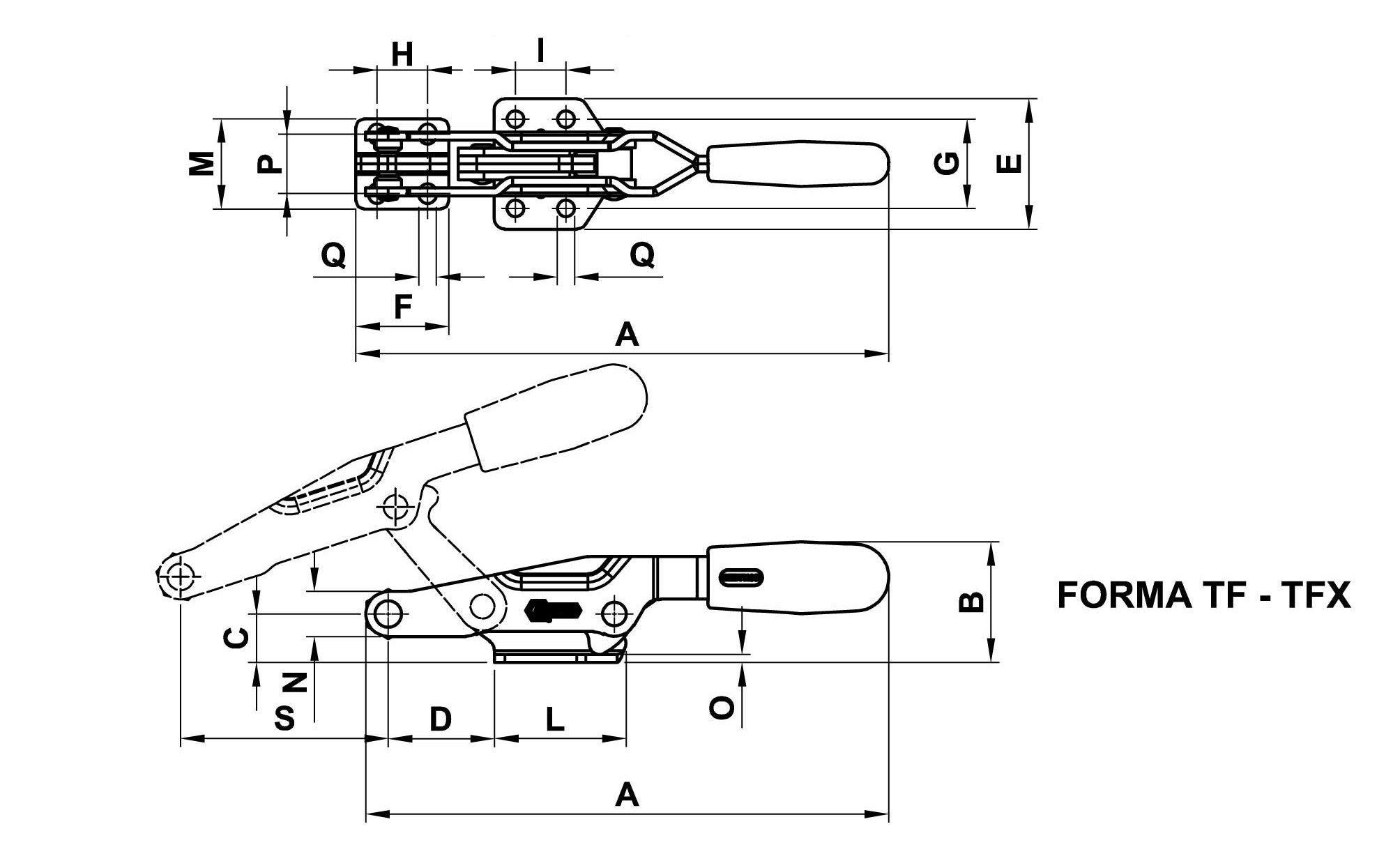

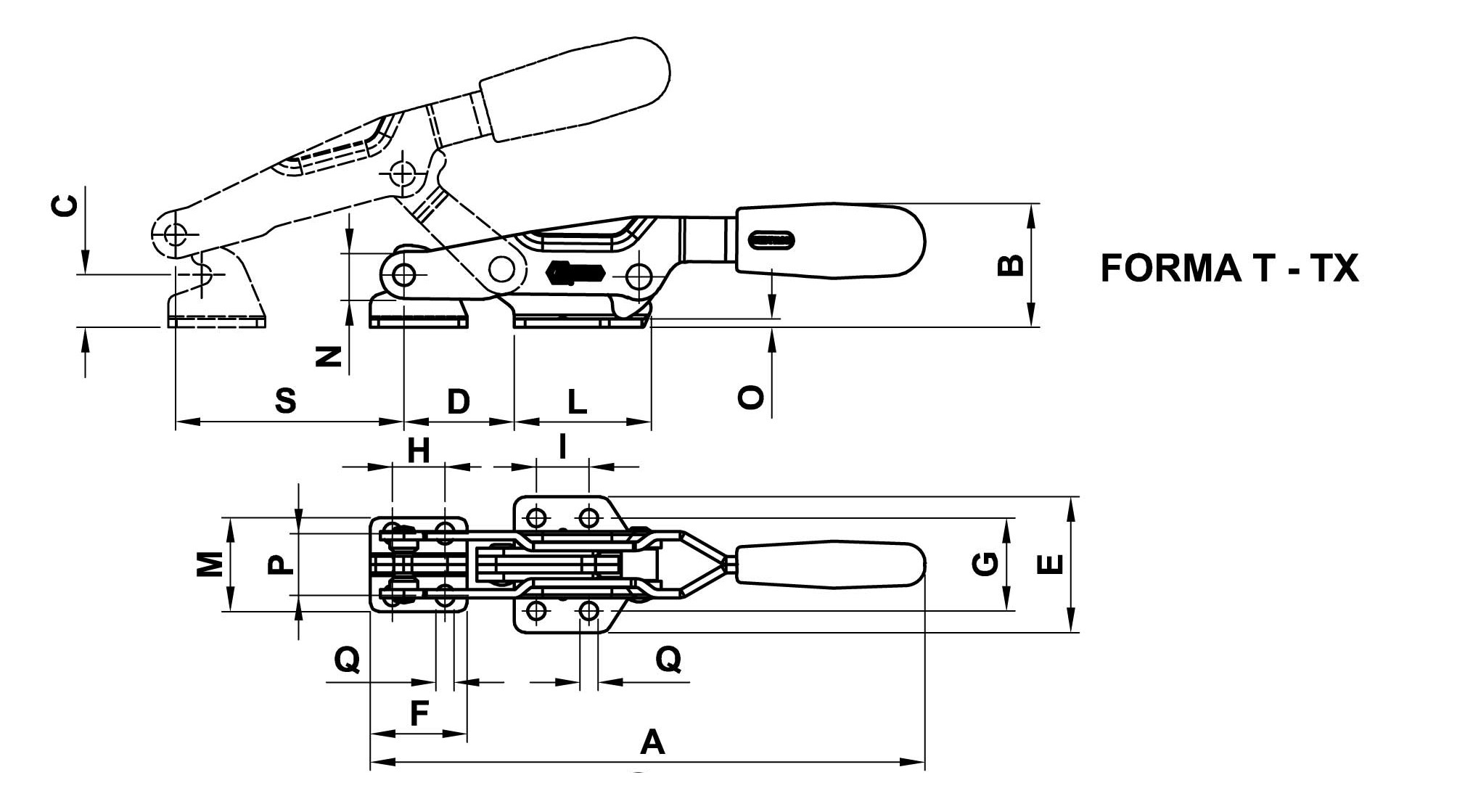

The latch type toggle clamps are most suitable for applications on lids and covers. An important feature of the toggle clamps of this line is the low profile of the tool, which becomes essential when clearance above the tool is required. It is possible to adjust the position of the rod according to the use requirements (see drawing).
A special grease is placed between two contacting surfaces during assembly.
Fields of Application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering
Material: Galvanized sheet metal or AISI 304 stainless steel
Riveted pivots and rod: Galvanized steel or AISI 304 stainless steel
Handles: Red polyurethane - resistant to oils, grease and other chemical agents.
Performance:
Form T and form TX is supplied with a pivot for traction and a hooking bracket.
Form TF and form TFX it is possible to choose from three different optional rods (to be ordered separately): Eye bolt rod "TG”,T-shaped rod "TT",Hook Rod "U".
