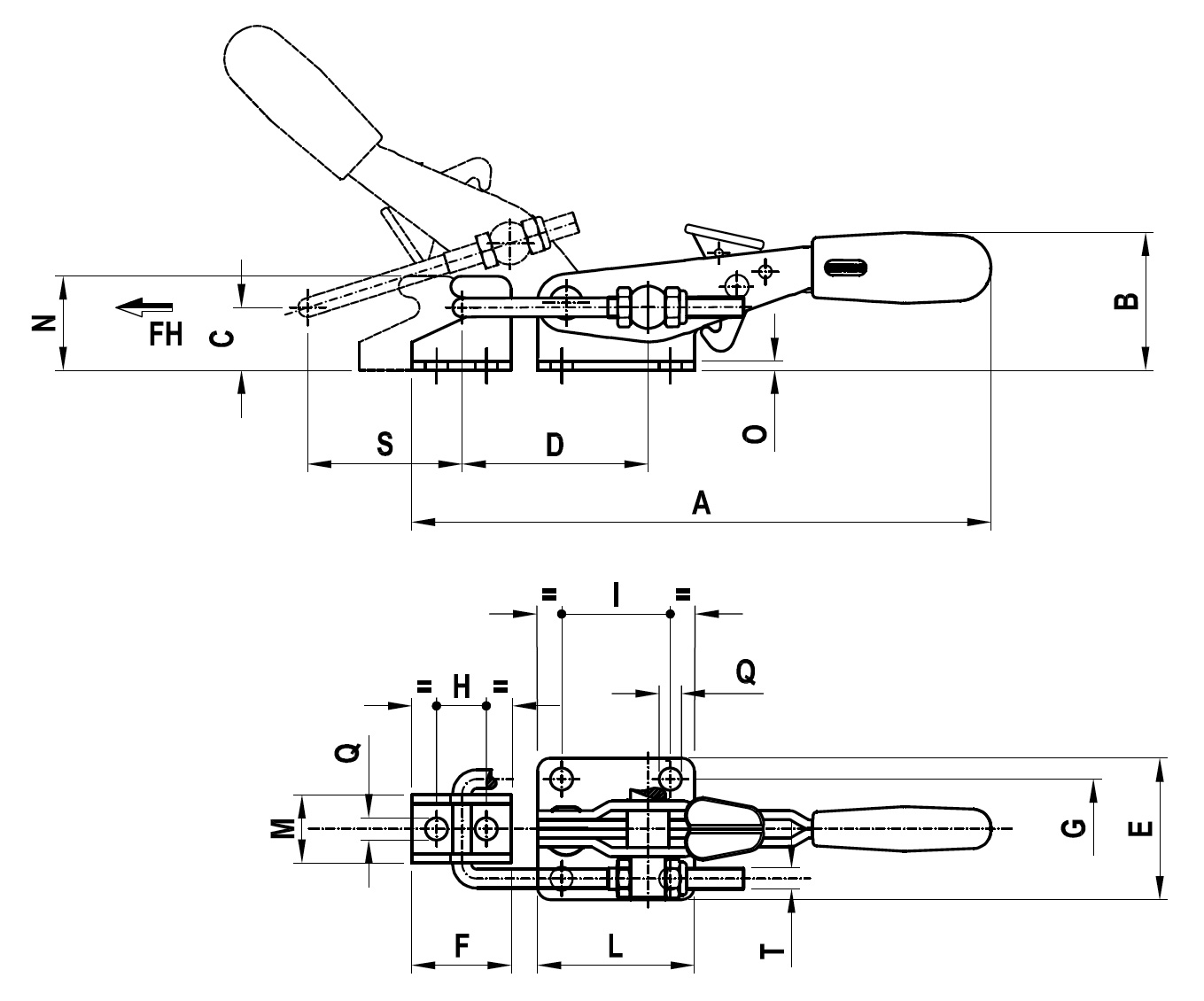

| Code | Code INOX | A | B | C | D | E | F | G | H | I | L | M | N | O | Q | S | T | Fh (daN) | gr | gr INOX |
| 2S.T160/T6 | 2S.T160/T16 | 101 | 31 | 12 | 35÷44 | 28 | 20 | 19 | 10 | 16 | 26 | 14 | 18 | 2 | 4,3 | 25 | M4 | 160 | 92 | 95 |
| 2S.T320/T6 | 2S.T320/T16 | 169 | 45 | 16 | 54÷63 | 44 | 28 | 32 | 14,3 | 19 | 40 | 22 | 25 | 3 | 6,5 | 44 | M6 | 320 | 307 | 331 |
| 2S.T700/T6 | 2S.T700/T16 | 221 | 56 | 24 | 70÷90 | 54 | 38 | 38 | 19 | 41,5 | 60 | 26 | 36 | 3,5 | 8,5 | 58 | M8 | 750 | 627 | 644 |
View the embedded image gallery online at:
https://www.getechsrl.com/en/products/hyrax/toggle-clamps/t6-latch-type-toggle-clamp-with-double-rod-and-safety-lock.html#sigProId12a6f7c79f
https://www.getechsrl.com/en/products/hyrax/toggle-clamps/t6-latch-type-toggle-clamp-with-double-rod-and-safety-lock.html#sigProId12a6f7c79f
Hyrax - Outlet
Toggle Clamps

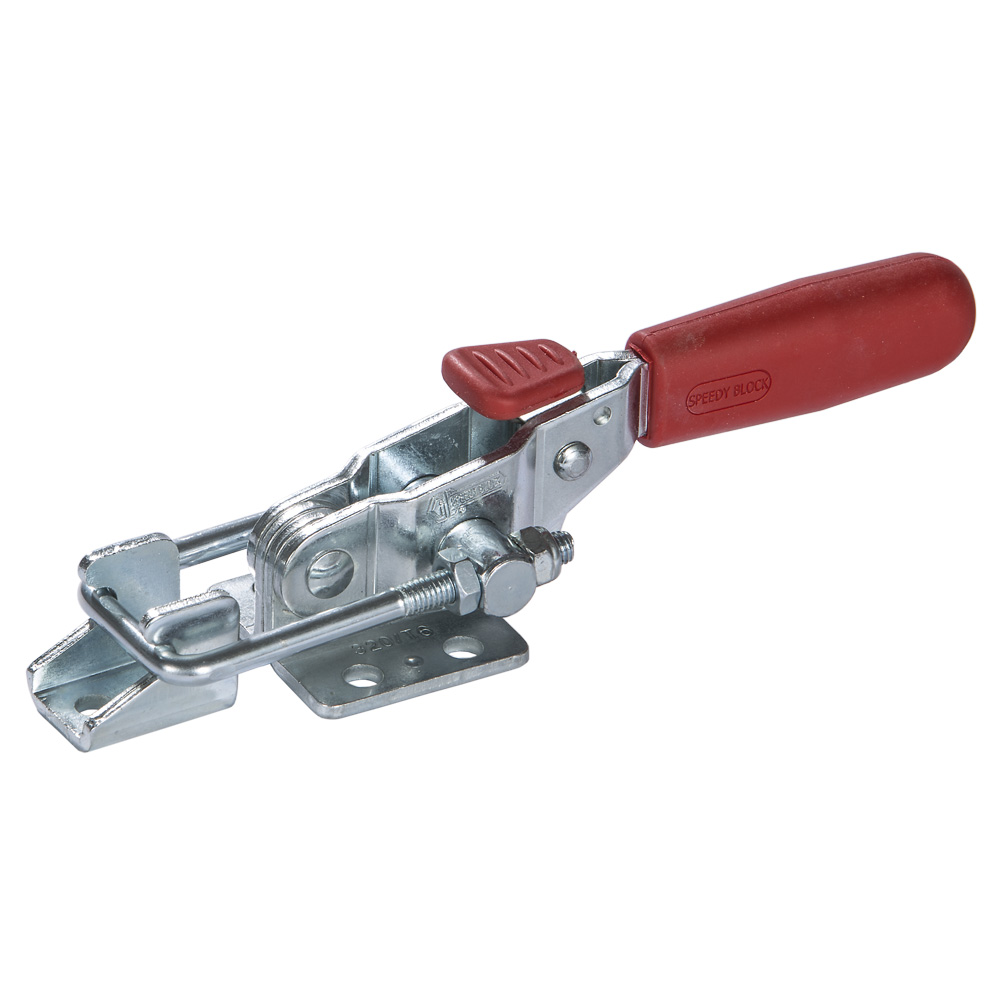

T6
Latch Type Toggle Clamp with Double Rod and Safety Lock
AISI 316 stainless steel items indicated with a 'T16' in their coding (eg. 2S.T160/T16)
Features and applications
In this series the special anti-release lever is avoiding any accidental opening caused by vibrations. The latch type toggle clamps are most suitable for applications on lids and covers. An important feature of the toggle clamps of this line line is the low profile of the tool, which becomes essential when clearance above the tool is required. In the closed position, the control lever is parallel to the support base.
A special grease is placed between two contacting surfaces during assembly.
Fields of Application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering
Material: Galvanized steel or AISI 316 stainless steel
Rivets and rods: Galvanized steel or AISI 316 stainless steel
Swinging pivot: Galvanized steel or AISI 316 stainless steel
Handles: Red polyurethane resistant to oils, grease and other chemical agents.
Performance: The tool comes with a double bar with hooking bracket and nuts.
In addition to the standard length of the U rods, a variety of other lengths are available.
