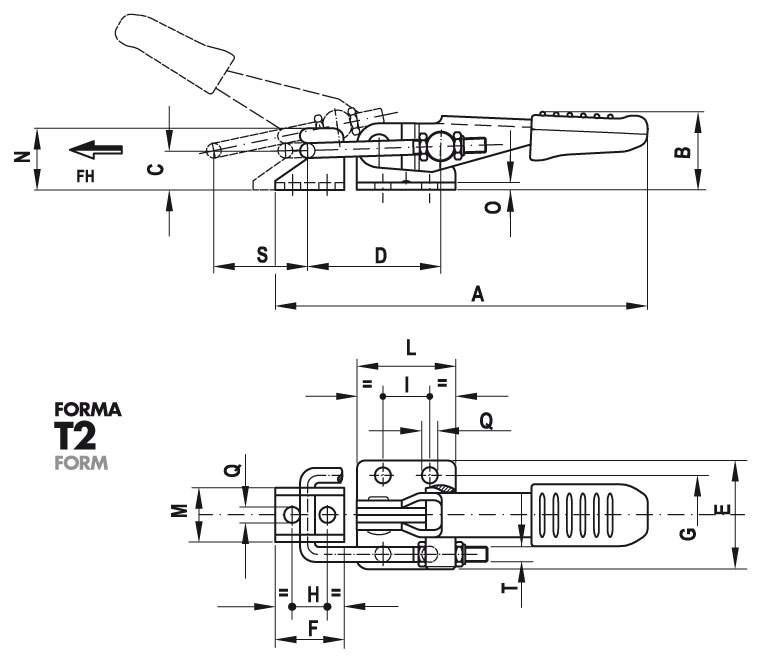

| Code | Code INOX | A | B | C | D | E | F | G | H | I | L | M | N | O | Q | S | T | Fh (daN) | gr |
| 2S.T160/T2 | 2S.T160/T2X | 98 | 25 | 12 | 35÷44 | 28 | 20 | 19 | 10 | 16 | 26 | 14 | 18 | 2 | 4,3 | 25 | M4 | 160 | 85 |
| 2S.T320/T2 | 2S.T320/T2X | 152 | 30 | 16 | 54÷63 | 44 | 28 | 32 | 14,3 | 19 | 40 | 22 | 25 | 3 | 6,5 | 48 | M6 | 320 | 250 |
| 2S.T700/T2 | 2S.T700/T2X | 220 | 42 | 24 | 70÷90 | 54 | 38 | 38 | 19 | 41,5 | 60 | 26 | 36 | 3,5 | 8,5 | 58 | M8 | 750 | 600 |
View the embedded image gallery online at:
https://www.getechsrl.com/en/products/hyrax/toggle-clamps/t2-latch-type-toggle-clamp-with-double-rod.html#sigProId66a57815f3
https://www.getechsrl.com/en/products/hyrax/toggle-clamps/t2-latch-type-toggle-clamp-with-double-rod.html#sigProId66a57815f3
Hyrax - Outlet
Toggle Clamps

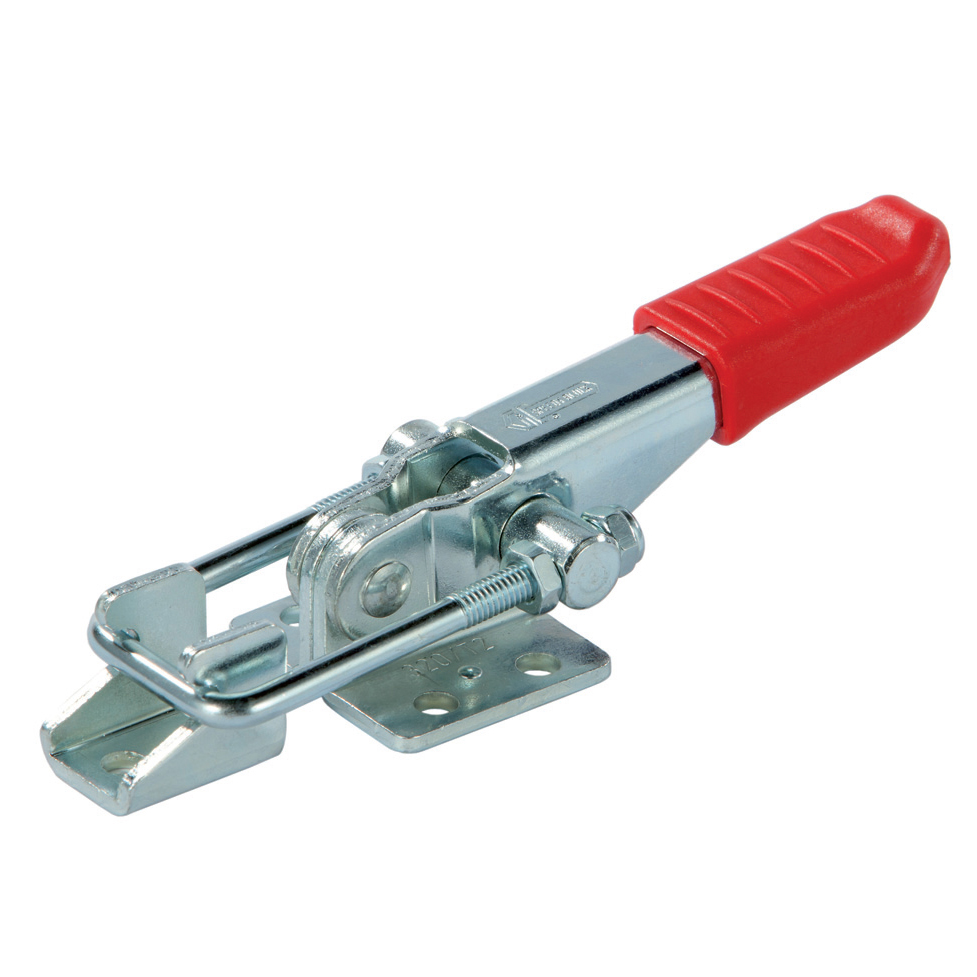

T2
Latch Type Toggle Clamp with Double Rod
AISI 304 stainless steel items indicated with an 'X' in their coding (e.g. 2S.T160/T2X)
Features and applications
The latch type toggle clamps are most suitable for applications on lids and covers. An important feature of the toggle clamps of this line is the low profile of the tool, which becomes essential when clearance above the tool is required. In the closed position, the control lever is parallel to the support base.
A special grease is placed between two contacting surfaces during assembly.
Fields of Application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering
Material: Galvanized steel or AISI 304 stainless steel
Riveted pivots and rod: Galvanized steel or AISI 304 stainless steel
Swinging pivot: Galvanized steel or AISI 303 stainless steel
Handles: Red polyurethane - resistant to oils, grease and other chemical agents.
Performance: The tool comes with a double bar with hooking bracket and nuts.
