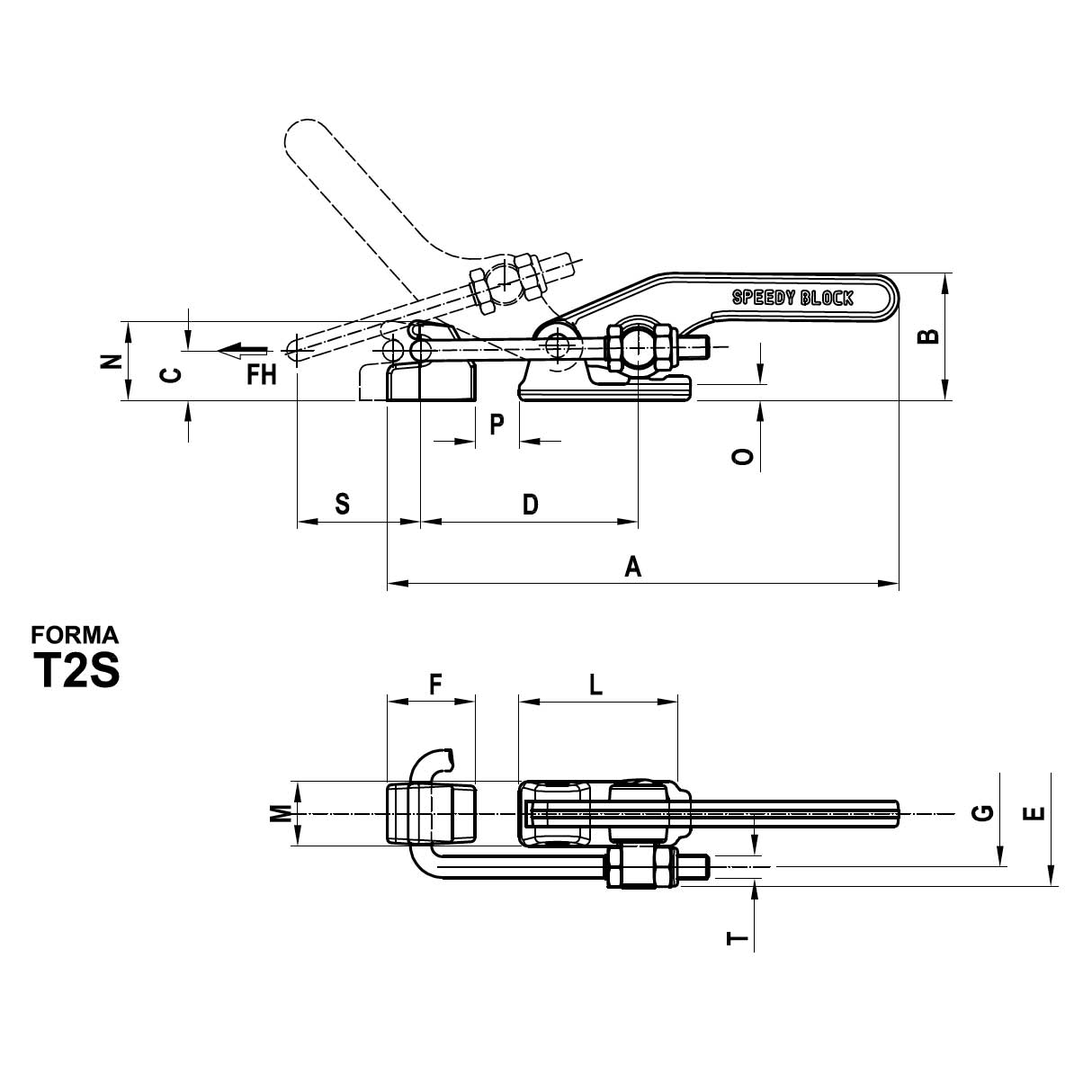

| Code | Code INOX | A | B | C | D | E | F | G | L | M | N | O | P | S | T | Fh (daN) | FhX (daN) | gr |
| 2S.T1700/T2S | 2S.T1700/T2SX | 221 | 55 | 21 | 94÷106 | 64 | 38 | 46 | 68 | 26.5 | 34.5 | 7 | 19 | 54÷58 | M10 | 1700 | 1400 | 1085 |
| 2S.T4000/T2S | 2S.T4000/T2SX | 277 | 68 | 27 | 102÷124 | 80 | 50 | 55 | 85 | 32 | 43 | 9 | 19 | 62÷65 | M12 | 4000 | 3000 | 2070 |
View the embedded image gallery online at:
https://www.getechsrl.com/en/products/hyrax/toggle-clamps/t2-heavy-weldable-latch-type-toggle-clamp-with-double-rod.html#sigProId6c83826b8a
https://www.getechsrl.com/en/products/hyrax/toggle-clamps/t2-heavy-weldable-latch-type-toggle-clamp-with-double-rod.html#sigProId6c83826b8a
Hyrax - Outlet
Toggle Clamps

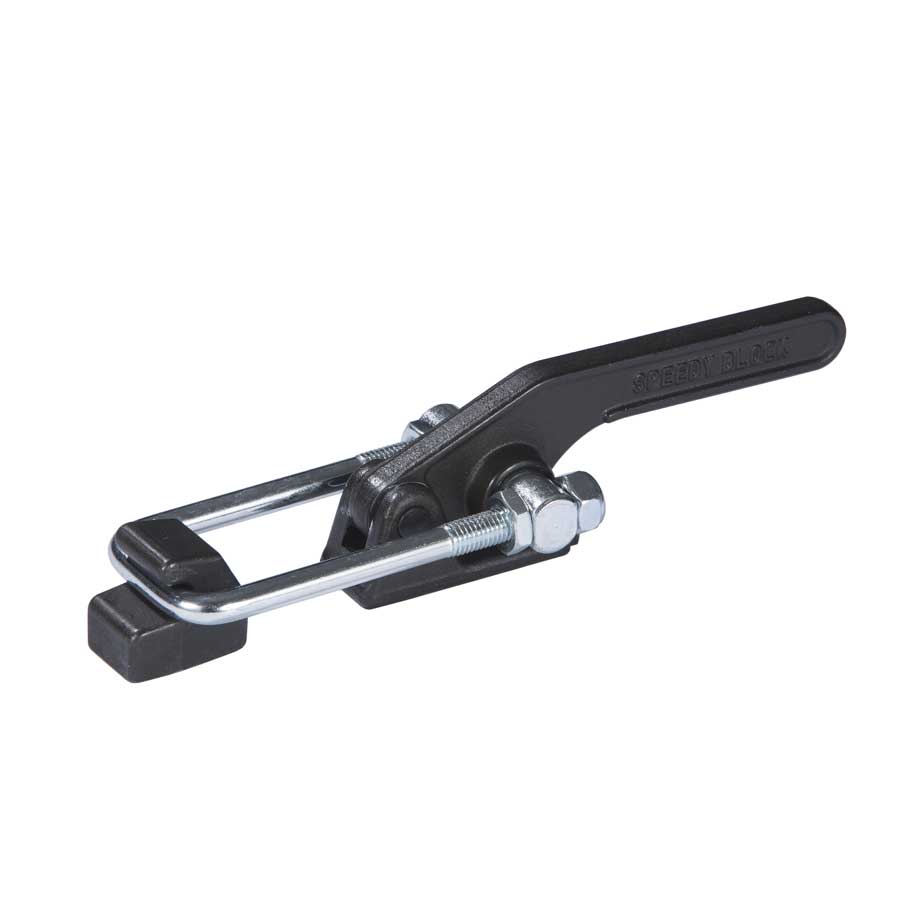

T2 Heavy Weldable
Latch Type Toggle Clamp with Double Rod
AISI 304 stainless steel items indicated with an 'X' in their coding (e.g. 2S.T1700/T2SX)
Features and applications
The latch type toggle clamps are most suitable for applications on lids and covers. Thanks to the materials chosen, the tools of the latch type heavy performance line guarantee extra resistance. An important feature of the toggle clamps of this line is the low profile of the tool, which becomes essential when clearance above the tool is required. In the closed position, the control lever is parallel to the support base.
A special grease is placed between two contacting surfaces during assembly.
Fields of Application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering
Material: Hot-stamped, weldable, black varnished steel or hot-stamped AISI 304 stainless steel.
Pivot: Hardened, ground and knurled steel to prevent rotation.
Bar, swinging pivot and nuts: Galvanized steel or AISI 303 stainless steel.
Performance: The tool comes with a double bar with hooking bracket and nuts. In addition to the standard length of the U rods, a variety of other lengths are available.
