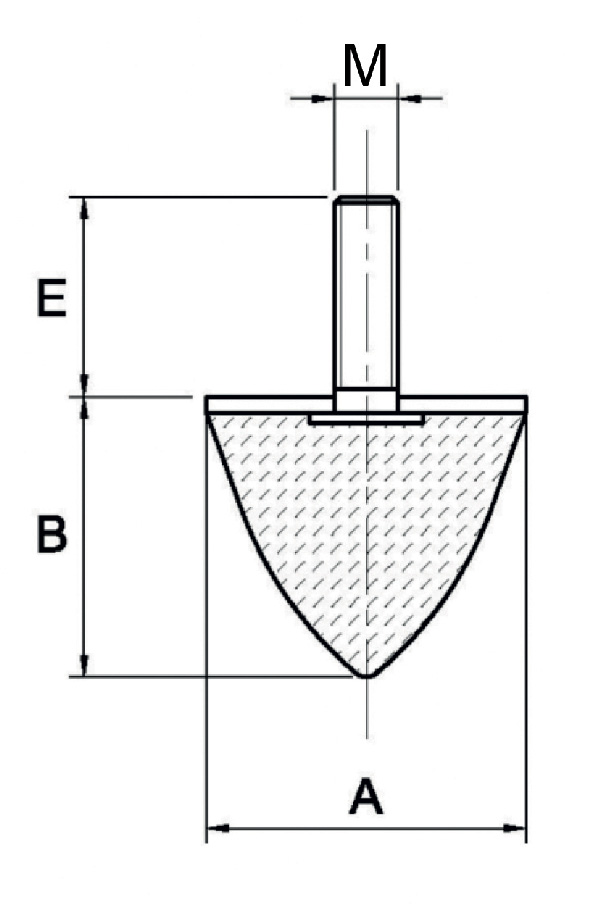

Click to enlarge image 1_disegno_CN.jpg

  • Click to enlarge image 1_disegno_CN.jpg

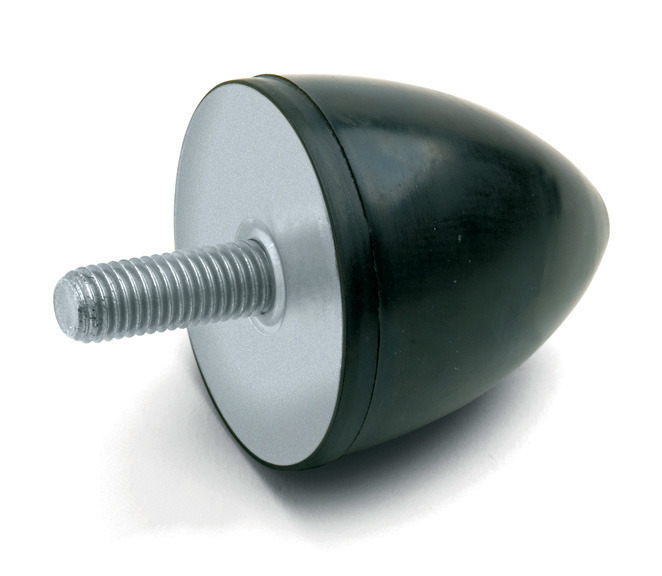

  • Click to enlarge image CN.jpg
  •
View the embedded image gallery online at:
https://www.getechsrl.com/en/products/flexo/machine/cn-shock-absorber-60sh.html#sigProId896563451a
Download Technical Sheet

Flexo

Machine Mounts

CN
Shock Absorber 60SH

Product specification


MAIN PART MATERIAL: NR/SBR rubber compound
STANDARD HARDNESS: 60 shore A
HARDNESS TOLERANCE: +/- 5 SH
ON REQUEST: Different screw lengths
METALLIC PART: Zinc plated screw and washer
STANDARD THREAD: Screw pressed on the washer

COD. A B M E Max Compression Load daN
A2CN24 25 22 06MA 20 20
A2CN25 25 22 10MA 20 20
A2CN2525 25 25 06MA 18 18
A2CNT2525 * 25 25 06MA 18 18
A2CN26 25 30 06MA 18 18
A2CN31 30 36 08MA 23 25
A2CN39 40 30 08MA 23 29
A2CN41 40 60 08MA 23 28
A2CN51 50 50 10MA 28 54
A2CN52 50 64 08MA 35 50
A2CN61 60 60 12MA 33 72
A2CN75 75 70 12MA 37 117
A2CN100 100 85 16MA 42 330

 * 45 SH
