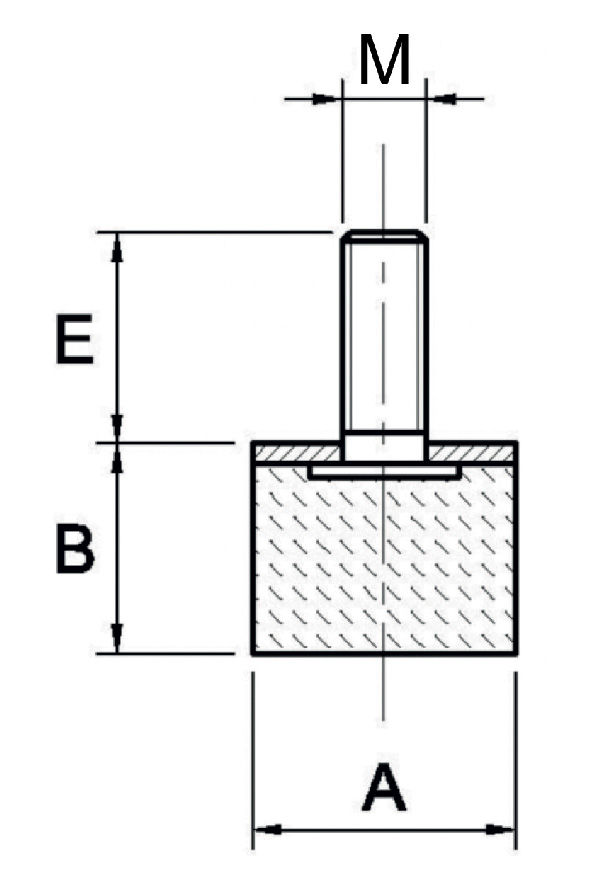

| COD. | A | B | M | E | Max Compression Load daN |
| A1PMT3020 | 30 | 20 | 08MA | 20 | 30 |
| A1PMT3030 | 30 | 30 | 08MA | 20 | 40 |
| A1PMT4030 | 40 | 30 | 08MA | 23 | 55 |
| A1PMT4040 | 40 | 40 | 08MA | 23 | 55 |
| A1PMT5040 | 50 | 40 | 10MA | 20 | 85 |
View the embedded image gallery online at:
https://www.getechsrl.com/en/products/flexo/cylindrical-mountings/pmt-zinc-plated-male-footing-45sh-soft-type.html#sigProId911b4ffc14
https://www.getechsrl.com/en/products/flexo/cylindrical-mountings/pmt-zinc-plated-male-footing-45sh-soft-type.html#sigProId911b4ffc14
Flexo
Cylindrical Mountings
PMT

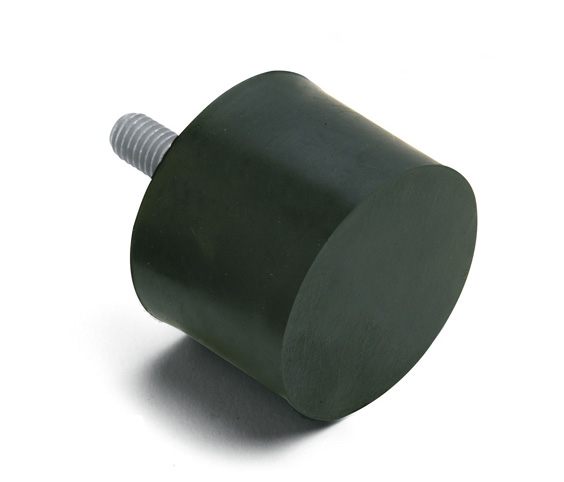

Zinc Plated Male Footing 45SH (Soft Type)
Product specification
MAIN PART MATERIAL: NR/SBR rubber compound
STANDARD HARDNESS: 45 shore A
HARDNESS TOLERANCE: +/- 5 SH
ON REQUEST: Different screw lengths
METALLIC PART: Zinc plated screw and washer
STANDARD THREAD: Screw pressed on the washer
