Flexo

Cylindrical Mountings

MFT

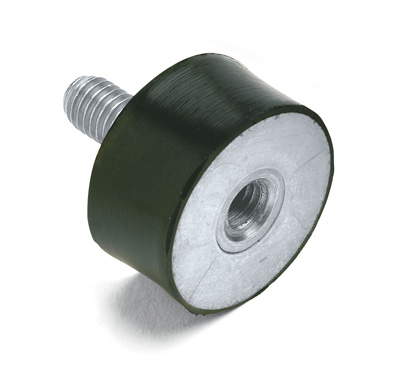

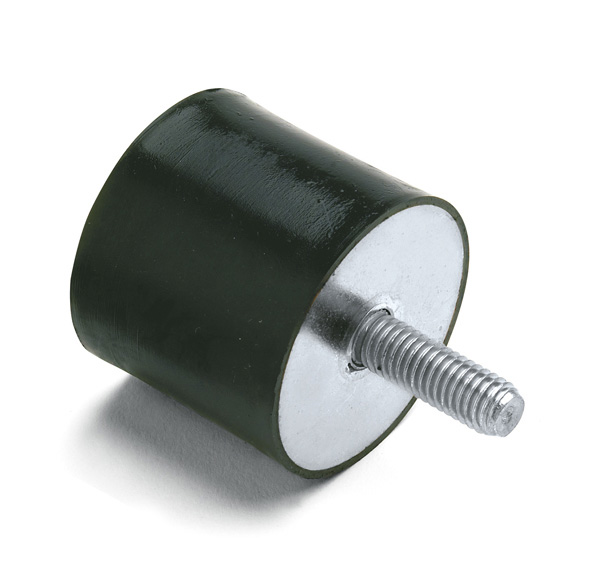

Zinc Plated Male/Female Cylindrical Mounting 45SH (Soft Type)

Product specification

MAIN PART MATERIAL: NR/SBR rubber compound
STANDARD HARDNESS: 45 shore A
HARDNESS TOLERANCE: +/- 5 SH
ON REQUEST: Different screw lengths, threaded through-hole
METALLIC PART: Zinc plated washer STANDARD THREAD: Zinc plated screw, threaded blind hole

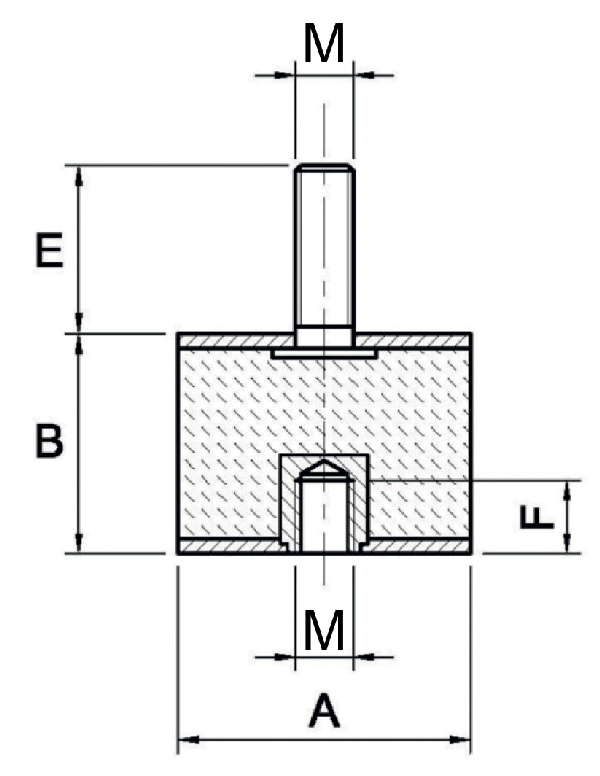

COD. A B M E F Max Compression Load daN Max Shear Load daN
A1MFT2025-10 20 25 06MA 10 8 19 2
A1MFT2025 20 25 06MA 16 6 11 1,3
A1MFT2515 25 15 06MA 18 6 27 3,3
A1MFT2520 25 20 06MA 18 6 27 3,3
A1MFT3030 30 30 08MA 23 8 37 4,7
A1MFT4030 40 30 08MA 23 8 59 10
A1MFT4030/10 40 30 10MA 28 10 59 10
A1MFT5030 50 30 10MA 28 10 95 13
A1MFT5035 50 35 10MA 28 10 95 13
A1MFT5050 50 50 10MA 28 10 80 9,4
A1MFT6035 60 35 10MA 30 10 137 27
A1MFT7550 75 50 12MA 37 12 224 45







Products Quotation Request

This procedure allows you to request a quote for the product . Quantity to request in the quote

* The n. of pieces in a pack are indicated on the product page, if not indicated reference is made to n.1 piece
