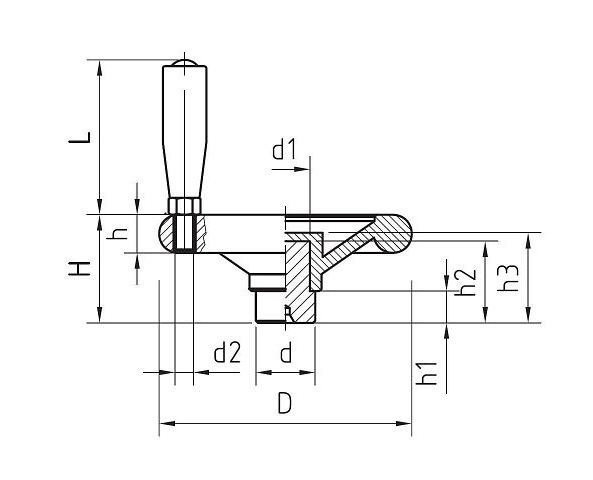

| COD. | D | d | d1 | d2 | H | h | h1 | h2 | h3 | L | Weight gr | Q.ty |
| B1VPG120 | 120 | 28 | 23 | 08MA | 50 | 18 | 14 | 38 | 42 | 70 | 396 | 1 |
| B1VPG160 | 160 | 40 | 32 | 10MA | 63 | 22 | 20 | 47 | 53 | 85 | 885 | 1 |
| B1VPG200 | 200 | 40 | 32 | 10MA | 73 | 23 | 21 | 45 | 61 | 85 | 1109 | 1 |
View the embedded image gallery online at:
https://www.getechsrl.com/en/products/compo/operating/vpg-handwheel-solid-with-revolving-handle.html#sigProIda433ff1f85
https://www.getechsrl.com/en/products/compo/operating/vpg-handwheel-solid-with-revolving-handle.html#sigProIda433ff1f85
Compo
Operating Components
VPG

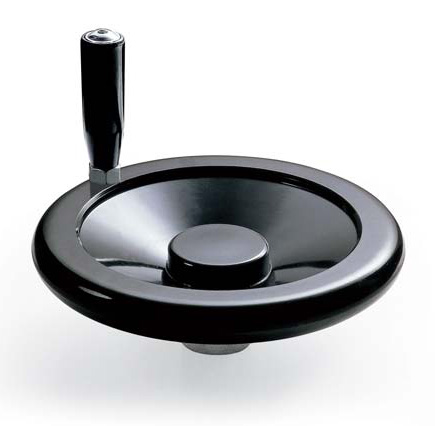

Handwheel Solid with Revolving Handle
Product specification
MAIN PART MATERIAL: Black phenoplast, solvents, oils, greases and other chemical agents proof (PF)
METALLIC PART: Zinc plated steel hub with predrilled hole
OTHER PLASTIC COMPONENTS: Revolving handle, with brass bushings
