Compo

Operating Components

CLB4

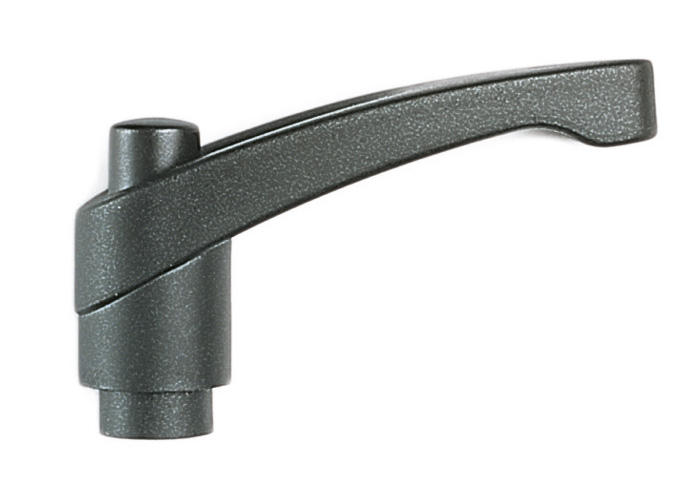

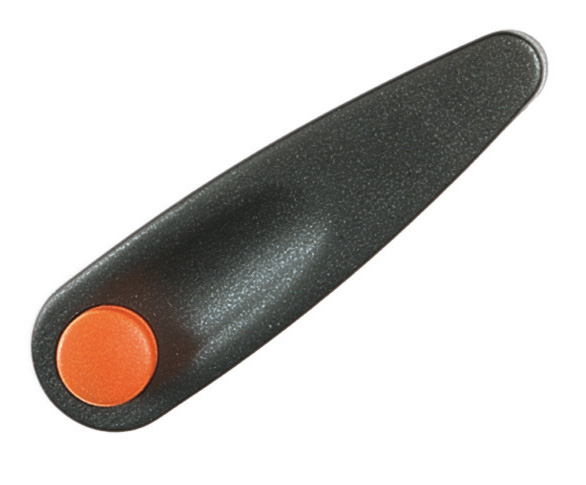

Ratchet Handle, Button Type, Threaded Insert

Product specification

MAIN PART MATERIAL: Reinforced polyamide
METAL AND/OR FASTENING PART: Threaded brass insert

Colors on request : Blue ; Yellow; Red; Grey

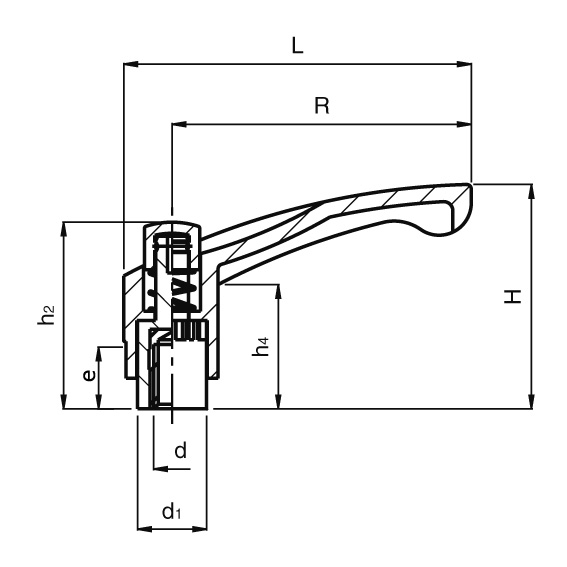

BLACK BODY/ORANGE BUTTON	ORANGE BODY/BLACK BUTTON	R	L	H	d	e	h4	d1	h2	U.V.
CLB44306	CLAB44306	43	51	38	M6	10	23	13	33	10
CLB46506	CLAB46506	65	75	48	M6	10	26	16	42	10
CLB46508	CLAB46508	65	75	48	M8	14	26	16	42	10
CLB48508	CLAB48506	85	98	63	M8	14	34	20	51	10
CLB48510	CLAB48510	85	98	63	M10	17	34	20	51	10
CLB48512	CLAB48512	85	98	63	M12	19	34	20	51	10
