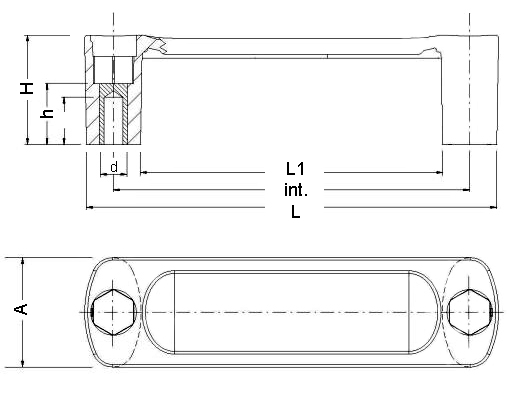

| COD. | L | Interaxe mm | d | P | L1 | A | H | h | Weight gr | Q.ty |
| B1SPB9305 | 114 | 93,5 | 05MA | 14 | 76 | 36 | 36 | 20 | 52 | 20 |
| B1SPB9306 | 114 | 93,5 | 06MA | 18 | 76 | 36 | 36 | 20 | 51 | 20 |
| B1SPB11706 | 137 | 117 | 06MA | 18 | 99 | 36 | 36 | 20 | 53 | 20 |
| B1SPB11708 | 137 | 117 | 08MA | 18 | 99 | 36 | 36 | 20 | 54 | 20 |
View the embedded image gallery online at:
https://www.getechsrl.com/en/products/compo/operating-components/spb-ellipse-u-handle-with-threaded-brass-insert.html#sigProIdcfa2894a92
https://www.getechsrl.com/en/products/compo/operating-components/spb-ellipse-u-handle-with-threaded-brass-insert.html#sigProIdcfa2894a92
Compo
Operating Components
SPB

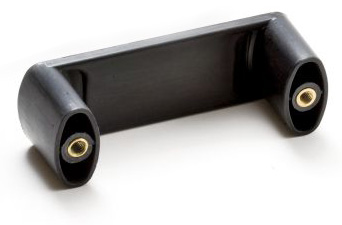

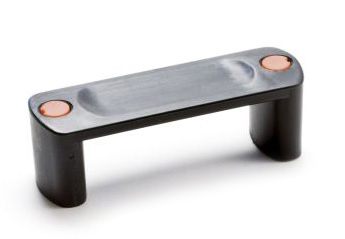

“Ellipse” U-Handle with Threaded Brass Insert
Product specification
MAIN PART MATERIAL: Black technopolymer, solvents, oils, greases proof (PA)
METALLIC PART: Brass insert, threaded blind hole
SPECIFICAL FEATURES: The handle is provided with two technopolymer caps orange RAL 2004
