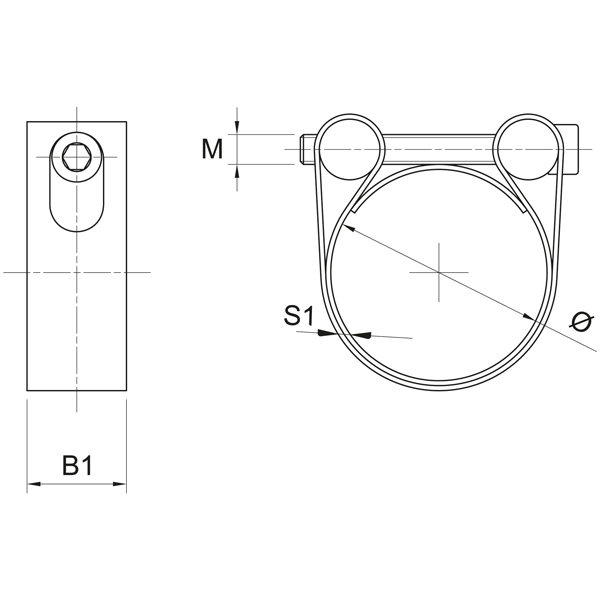

Click to enlarge image 1_SP_disegno.jpg

View the embedded image gallery online at:
https://www.getechsrl.com/en/products/kiudo/worm-drive-hose-clamps/sp-t-bolt-clamp-with-socket-screw-and-strong-band-w1.html#sigProIde5bf3ae4aa

Download Technical Sheet

Kiudo

Worm Drive Hose Clamps

SP

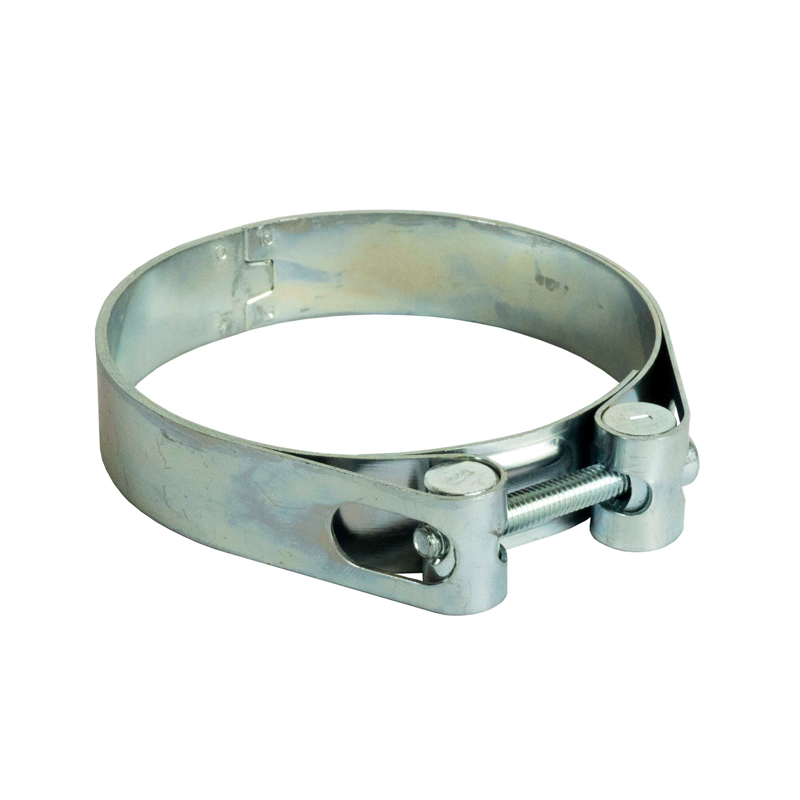

T-Bolt Clamp with Socket Screw and Strong Band W1

Product Specification

BAND, HOUSING SCREW MATERIAL: Zinc Plated steel W1

BAND FEATURES: Smooth reinforcement

FEATURES SCREW: Allen screw

COD.	Ø min. mm	Ø max. mm	B1 mm	M	S1 mm	Safe Working Totque	U.V.
SP035	36	40	20	6	1	8 Nm	50
SP040	41	45	20	6	1	8 Nm	50
SP045	45	50	20	6	1	8 Nm	50
SP050	50	55	20	6	1	8 Nm	50
SP055	55	60	20	6	1	8 Nm	50
SP060	60	65	20	6	1	8 Nm	50
SP065	65	70	20	6	1	8 Nm	50
SP070	70	76	20	6	1	8 Nm	25
SP075	75	81	20	6	1	8 Nm	25
SP080	80	86	20	6	1	8 Nm	25
SP085	85	90	20	6	1	8 Nm	25
SP090	90	95	20	6	1	8 Nm	25
SP095	95	100	20	6	1	8 Nm	25
