|Code||Code INOX||A||B||C||D||E||F||G||H||I||L||M||N||O||P||Q||S||Fh (daN)||gr|
Hyrax - Outlet
TL - TFL

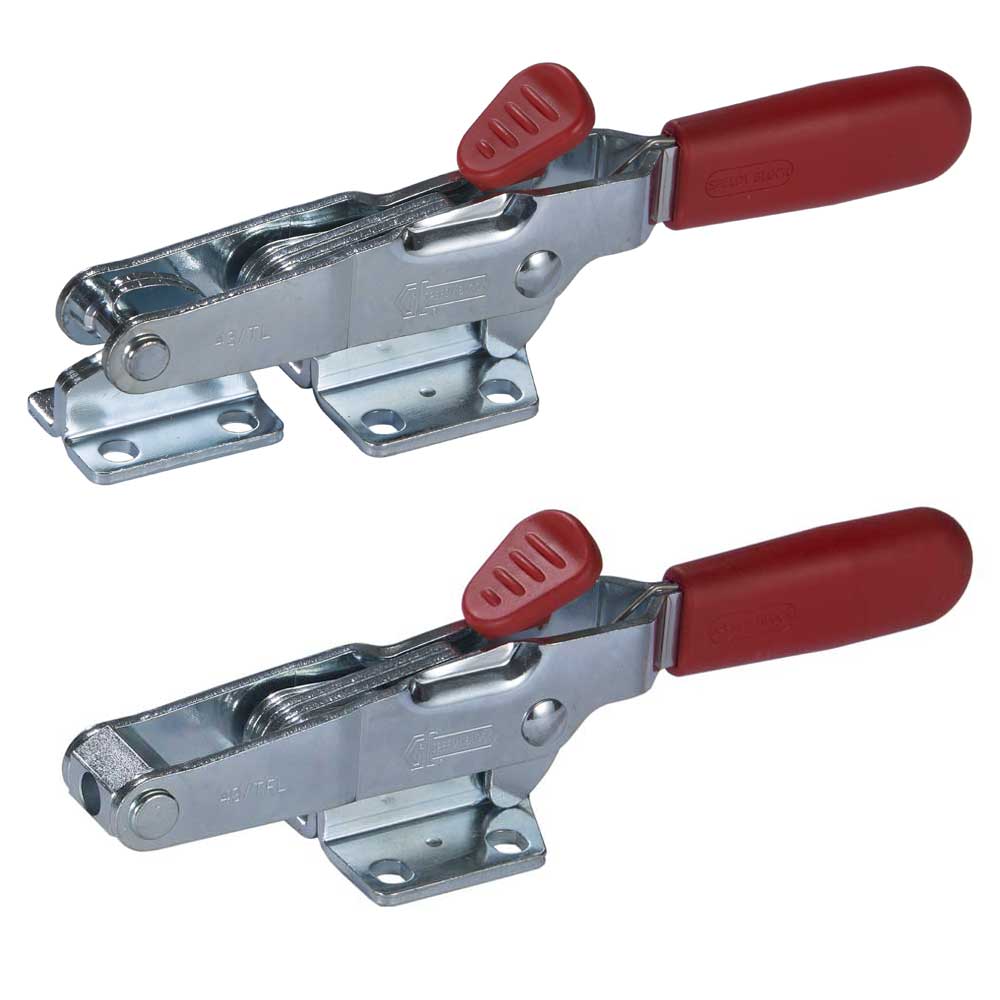

Latch Type Toggle Clamp with Safety Lever
AISI 304 stainless steel items indicated with an 'X' in their coding (e.g. 2S.T33/TLX)
Features and applications

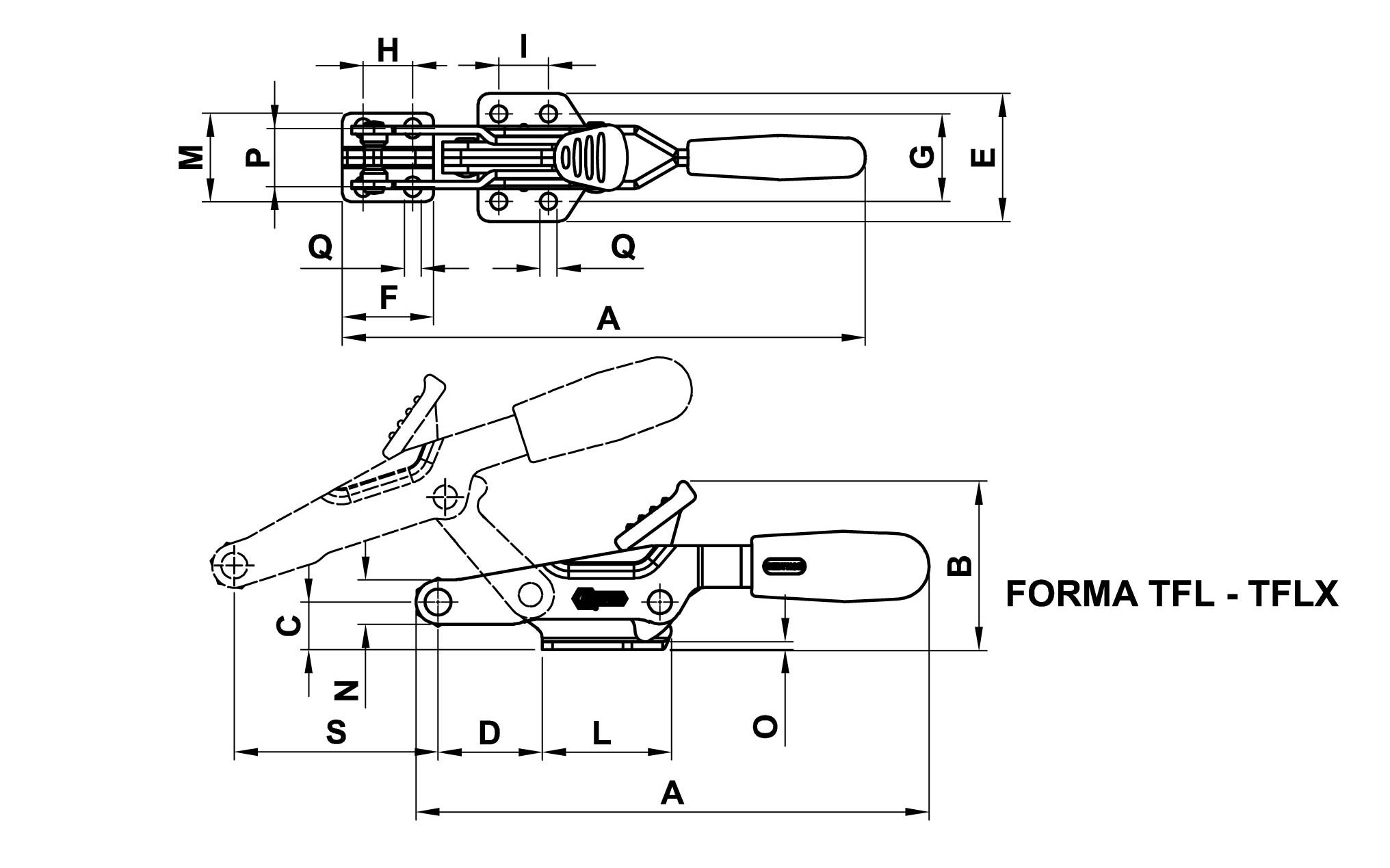

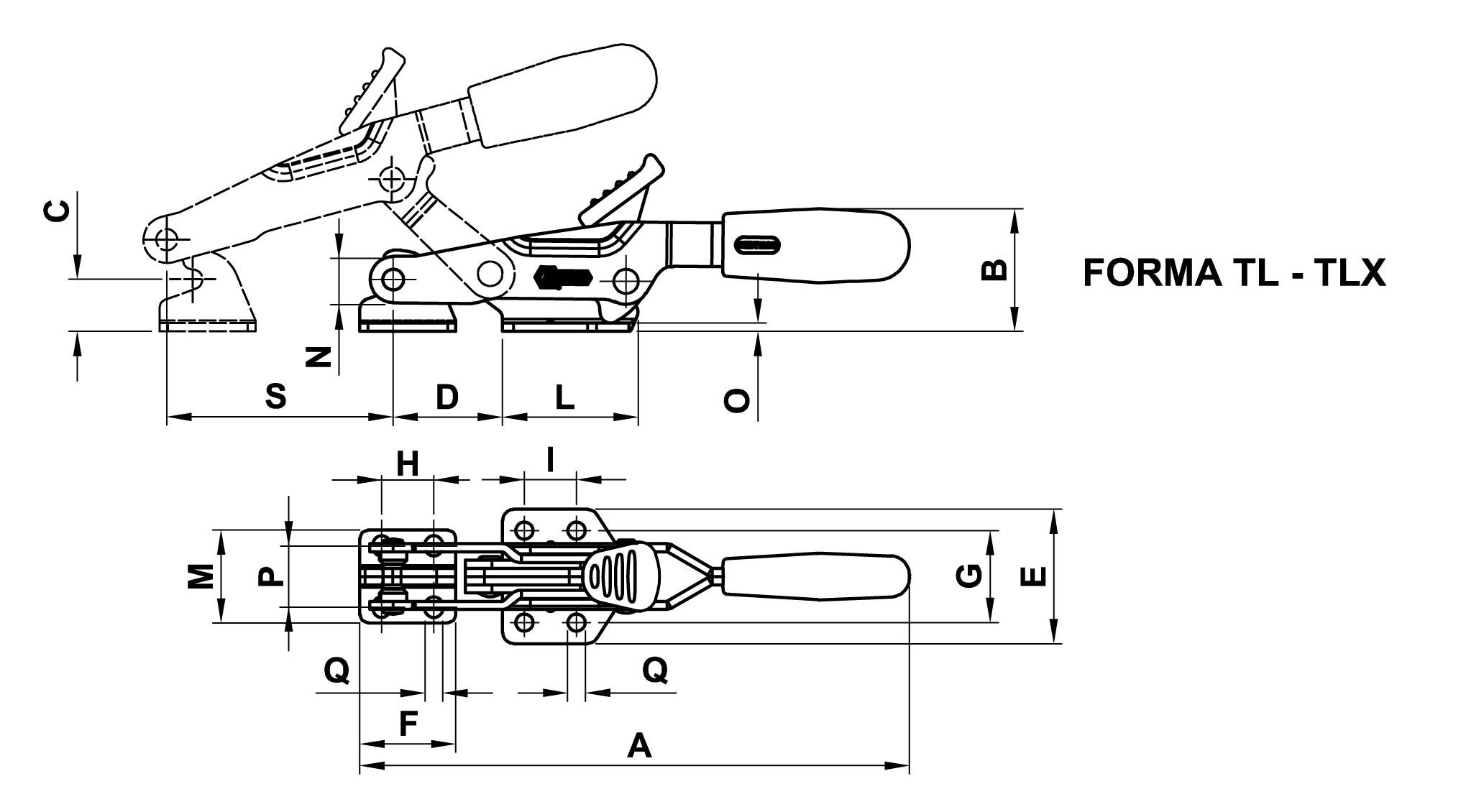

In this series the special anti-release lever is avoiding any accidental opening caused by vibrations. The latch type toggle clamps are most suitable for applications on lids and covers. An important feature of the toggle clamps of this line is the low profile of the tool, which becomes essential when clearance above the tool is required. It is possible to adjust the position of the rod according to the use requirements (see drawing).
Material: Galvanized sheet metal or AISI 304 stainless steel
Riveted pivots and rod: Galvanized steel or AISI 304 stainless steel
Handles: Red polyurethane - resistant to oils, grease and other chemical agents.
Form TL and form TLX is supplied with a pivot for traction and a hooking bracket.
Form TFL and form TFLX it is possible to choose from three different optional rods (to be ordered separately): Eye bolt rod "TG", T-shaped rod "TT",Hook Rod "U".
